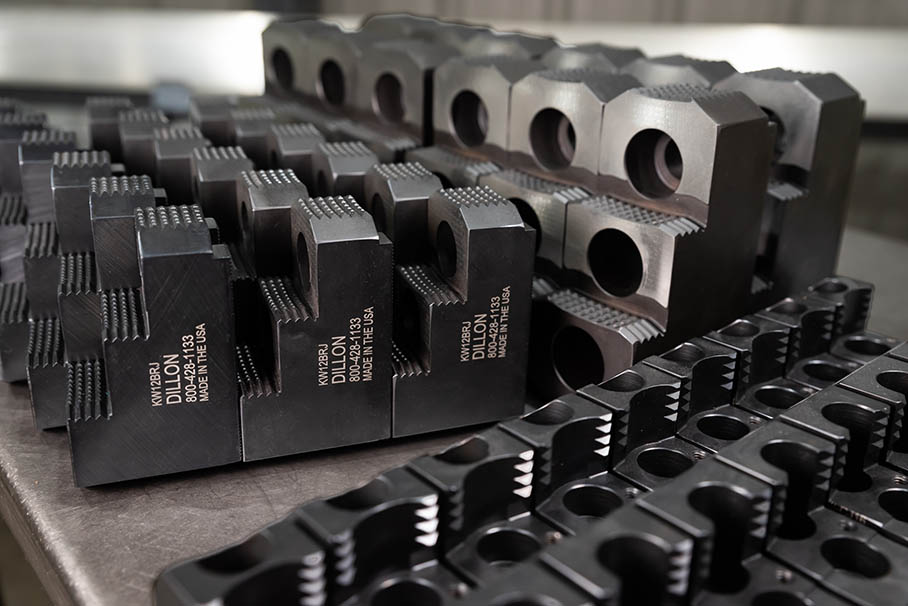

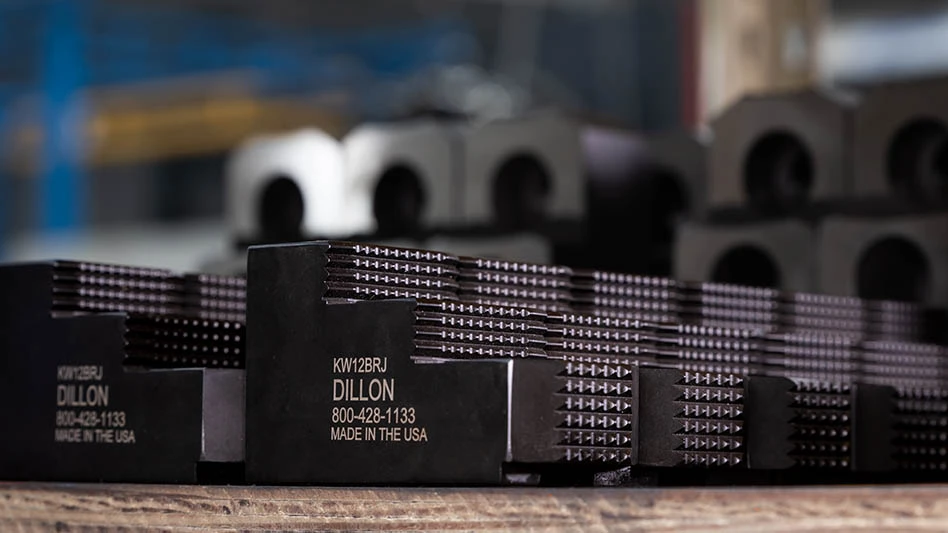

Reversible hard jaws from Dillon Manufacturing are suitable for ID and OD workholding, so they can decrease the time and cost of tool setups, yet still accurately grip and locate work pieces. Designed to hold a specific range of part sizes, these jaws are usually used for first operation workholding. They are available in serrated, Acme Key, square key, and tongue-and-groove styles to fit all brands of chucks. Single or two-step jaws feature diamond-shaped serrations which provide secure gripping and accurate parts locating.
The jaws are manufactured of 8620 case hardened steel with ground locating surfaces, and black oxide coated for corrosion resistance. Dillon also offers custom made special or modified hard jaws.
Dillon Manufacturing, Inc. manufactures a complete line of standard and custom workholding solutions including chuck jaws, chucks, vises jaws, soft jaws, hard jaws, collet pad jaw systems, chuck lubrication, and more. All products are made in the USA and Dillon is ISO 9000:2015 registered.
