SAKOR Technologies providing dynamometer system for testing EV motors, inverters

SAKOR Technologies Inc, a provider of high-performance dynamometer systems, provided Carpenter Technology Corp (CTC) with a dynamometer test system to test the effectiveness of new alloys being used for electric motor components and inverters. The system features both a 250 kilowatt (kW) and a 12 kW AccuDyne four quadrant AC dynamometer, which covers a wide range of electric motor testing capability. The test system also includes a 250 kW, 800 VDC, ±500-amp battery simulator. The dynamometer and other subsystems are configured for electric vehicle motor and inverter testing.

The system will be automated by SAKOR’s DynoLAB test automation controller, a powerful system enabling test engineers and/or technicians to design and implement complex test procedures without needing to learn a programming language. Operators can quickly configure and run tests using the easy to use, menu driven interface.

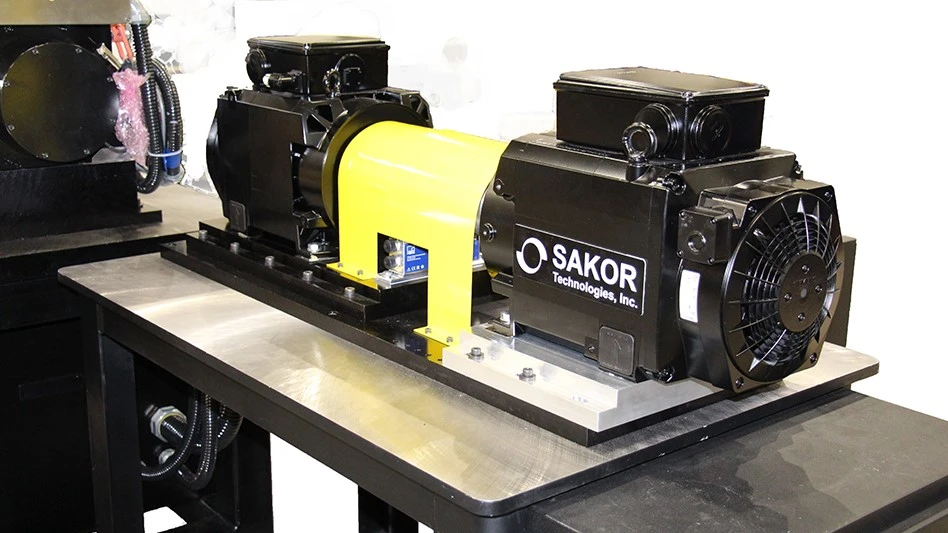

© SAKOR Technologies Inc.

https://www.sakor.com/

The unique multi-function two-dynamometer electric motor test system provides the ability to test a wide range of motor sizes. Also included are two universal inverters directly powering the AC motors under test. It also includes a high voltage battery simulator providing DC power to the customer’s vehicle inverter. An included cooling system enables testing of both air- and water-cooled motors and inverters.

The AccuDyne four-quadrant dynamometers are capable of full bi-directional loading and motoring of the device under test. They can also provide full rated torque at stall. Each dynamometer and the battery simulator, provides regenerative power recapture. This makes the test system itself power efficient and reduces operating costs.

“The customer needed a machine that could test a very broad range of motor sizes and powers and this new system allows them to test new motor technology with or without customer inverters, making it extremely versatile,” says Randal Beattie, president of SAKOR. “This single system will take the place of as many as four independent test stands.”
