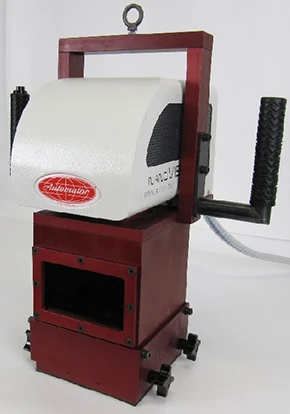

Ashville, Ohio - Automator gets the grip with hand-held marking requirements by introducing the VIS-P portable laser marker. The VIS-P joins the Automator family of laser marking solutions, and is an extremely light and solid unit.
Check out the 2016 IMTS Conference!
The VIS-P comes standard with laser sources options that include: IVO4, 10-watt, 20-watt, 30-wtt and 40-watt. The VIS-P is great for applications to mark plastics, metals and alloys, as well as anodized, painted surfaces. With two laser handles and a Snorkel that insures accurate and safe laser beam up to three feet, the VIS-P allows for marking large, oversized components on the spot.
This robust and compact laser system is air cooled for economical operation. The VIS-P laser comes standard with a marking area of 110 x 110 mm (4.33 x 4.33”). Alternative size marking areas are options. Also, included in the VISP Laser package is the Galvometric head, laser source, electronics, and external power supply.
Operating the VIS-P is easy with the Genius software which is multilingual. Marking details such as serial numbers, straight line and arc text with full TIF capability, basic geometrical figures, shift and date codes, bar codes and 2D/Data matrix are standard capabilities for complete traceability. Logos and pictures are easily added to marking files by importing .dxf, .wmf and .plt formats. Options are available for automated data entry with bar code scanners.
As an option, the VIS-P can operate without a PC using the MarkAlone platform. The VIS-P also accepts signals from PLC digital I/O for diagnostic output and Control input, as well as Ethernet or serial connections.
Source: Automator
