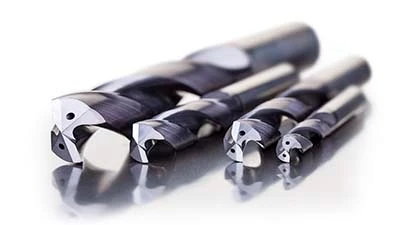

Dormer Pramet’s solid carbide Force X program adds a range of tools stainless steel applications called Force M. The Dormer Force M assortment of drills provide a high level of productivity specifically for drilling stainless steel (or ISO-M) materials while operating consistently across a diverse variety of machines and conditions.
Their Force M material specific drilling family introduction follows the recent launch of the Force X drilling family which was designed for use in a wide range of materials.
All solid carbide Force drills in the program feature a modified four-facet split point geometry, to enhance self-centering capabilities and improve hole-quality. Also, this split point design improves chip formation, tool strength and wear resistance specifically in these tough ISO-M materials.
A unique feature of all Force family drills is their continuously thinned web (CTW) technology flute construction. This offers a very strong web design, while at the same time reducing thrust forces during drilling. Combined with the drills’ consistent edge preparation, which provides predictable wear, CTW supports a highly consistent and reliable drilling process.
Each drill in the Force range is manufactured from premium micro-grain carbide along with a multi-layered titanium aluminum nitride (TiAlN) tool coating to provide an excellent combination of hardness and toughness, resulting in high wear resistance, longer tool life and higher productivity.
A strong corner design increases stability and reduces the forces encountered during drilling and especially during breakthrough at the exit surface, in both general drilling and cross-hole applications.
Supporting drilling depths of 3xD solid construction (R458) or coolant through (R467), and 5xD solid construction (R454) or coolant through (R463) the Force M drills feature internal coolant delivery in all sizes from 3mm to 16mm and 1/8 to 5/8 inch.
