The table TAP allows users to upgrade a vertical machining center to increase productivity without incurring the expense of a new machine.

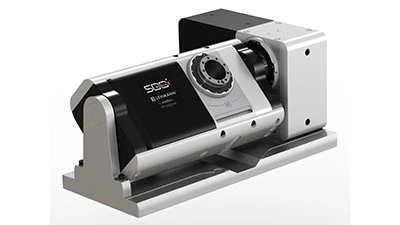

In conjunction with the right machine, the 5AX rotary table TAP creates a compact and economical 5-axis machining center for small and medium-sized work pieces up to a cube of approximately 5.9" (150mm).
Adaptable to nearly any workpiece or production situation, 500 series tables can be assembled into as many as 240 different configurations. It has more than 20 clamping methods and behind-the-spindle accessories that include rotary unions, special clamping cylinders, and angular position measuring systems.
The series includes single-spindle and multi-spindle tables, available in 4-axis and 4/5-axis versions. Swiveling-bridge-style 4-axis tables employ the roto-FIX clamping yoke for machining of multiple parts. The tables’ backlash-free preloaded gear drives (PGD) provide high torque and high rotation speeds, with spindles capable of 47rpm to 111rpm and cycle times for 90 degrees of 0.34 sec. pL Lehmann 5-axis tables operate in simultaneous machining or productivity-enhancing 3+2 positioning modes.
