Marposs’ OptoCloud EDU (Electric Drive Unit) is its latest generation of 3D precision inspection solutions for the electrical vehicle (EV) industry. Using multiple laser heads in tandem with contact sensors for measurement and vision inspection, OptoCloud EDU reconstructs the 3D model of complex and articulated workpieces in less than a minute to ensure accuracy of the produced component. It can validate 240 electrical contacts of a motor stator in 30 seconds, 100x faster than traditional contact systems.

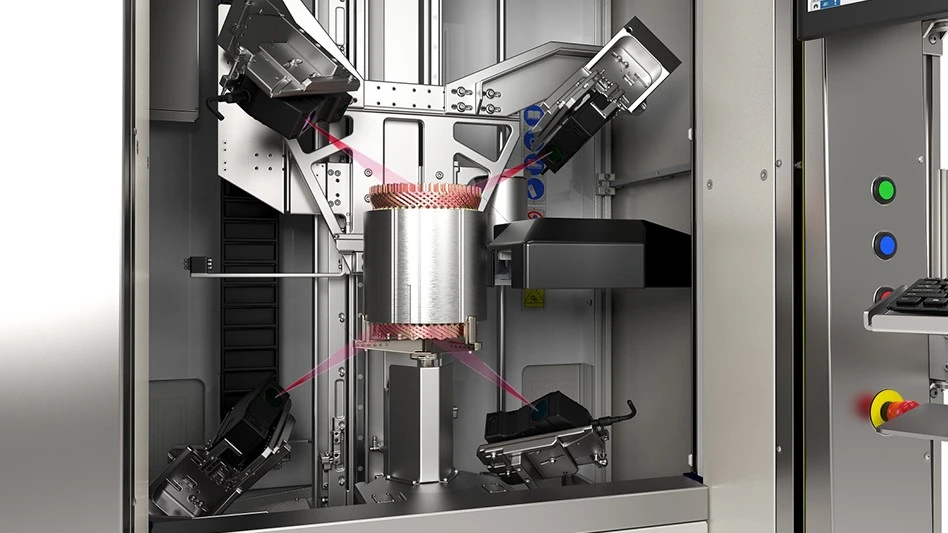

The laser heads are integrated over a moving axis designed to position the lasers for the 3D acquisition.
To generate a point cloud of the workpiece, the part is rotated 360° while the different laser heads acquire spatial data combined into a single 3D reconstruction and graphical representation made through the software. The system executes the measurement and vision inspection tasks. Line operators review images and navigate to the desired level of detail, identifying any anomalies.
The multiple laser heads create a point cloud with a high level of spatial resolution providing a reliable dataset that can also be used for design reviews and final project validation.
Part handling is fast and easy with the OptoCloud EDU. Its design features a Z-axis that allows the laser heads to automatically move out of the handling area, leaving a large space for workpiece handling and removing risk of sensor damage due to handling error.
Marposs OptoCloud EDU can handle components up to 300mm x 300mm (12” x 12”) and weights of 60kg (132 lb.). The system measures 1200mm x 1304mm x 2304mm (47” wide x 51” deep x 91” tall).
Marposs
https://www.marposs.com
IMTS 2022 Booth #135621
