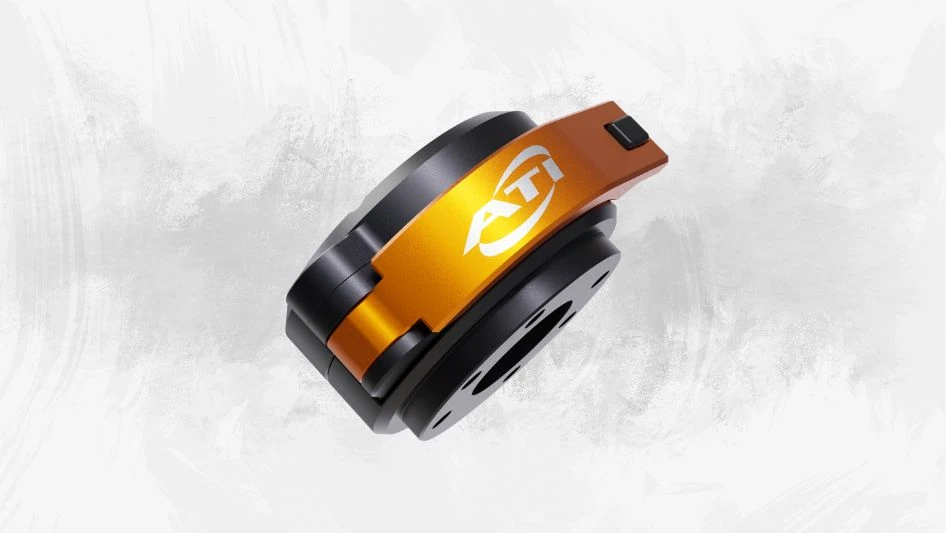

ATI introduces the MC-50 Manual Tool Changer

ATI Industrial Automation has introduced the MC-50 Manual Tool Changer, providing performance, reliability and quality for the manual exchange of robotic tooling.

With intuitive and ergonomic lever operation, the patent-pending MC-50 provides a simple solution for quickly changing robotic end-of-arm tooling by hand. This compact and robust Tool Changer is designed for applications on collaborative robots that support payloads up to 25 kg, and small industrial robots supporting payloads up to 10 kg.

Featuring an ISO 50 mm mounting interface on the Master-side and Tool-side, the low-profile MC-50 mounts directly to most cobots, and seamlessly integrates with many common cobot marketplace grippers and end-effectors, the press release notes.

The MC-50 also includes a safety latch button on the lever to provide secondary locking for increased safety and prevention of involuntary uncoupling. A variety of electrical and pneumatic utilities for downstream end-effectors are supported through four (4) M5 integrated pneumatic pass-through ports and a mounting flat for optional ATI Utility Modules.

Target industry segments include electronics, aerospace, automotive and general industry.
